RED ---> BATTERY+ (constant 10-90V)
BLACK ---> BATTERY-
YELLOW ---> IGNITION (7.5-90V)
GRAY ---> OPTIONAL (5-90V)

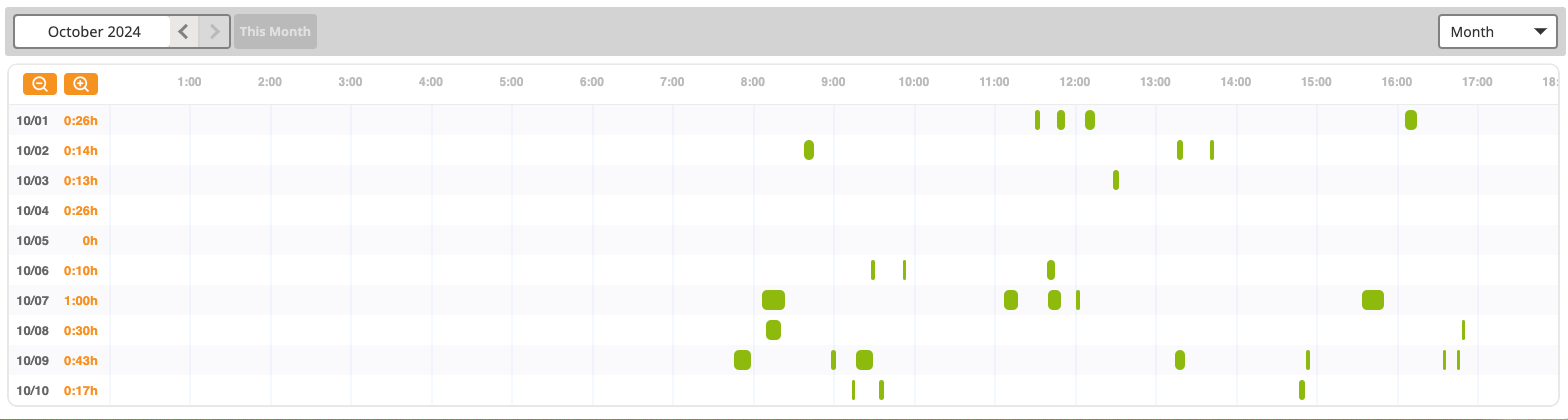

YELLOW-IGNITION: This will indicate the ON time of your machine, showing up as green bars on the platform under the Runtime pane in the Statistics tab.
This input is dedicated to detecting the runtime of your machine and detects positive voltages ranging from 7.5-90V. Make sure to wire it to a spot in the machine where voltage is present when the machine is turned ON and voltage is absent when the machine is turned OFF, otherwise the installation will not work properly.
DIN2/GRAY: It is possible to get green bars for ONE additional input, similarly to the picture above. You can wire this input to anything you would like to track as long as the voltage ranges from 5V-90V. The same logic applies in terms of voltage being present and absent.
With cleaning machines, the additional input usually tracks brush motor or suction motor.
You can track the green bars under the corresponding pane under the Statistics pane.
To put down an order for this item, please write an email to orders@toolsense.io noting the item code and quantity of the required item(s).
Order Codes:
TSIOT-TFTC921-RUN for Europe
